Fortus FDM 3D Production Systems

The Fortus 3D Production Systems produces the most accurate and durable prototypes and parts using high-performance thermoplastics. And it offers the largest build size and maximum throughput.

Only Fortus FDM technology offers advanced production grade thermoplastic materials and state-of-the-art hardware and software. By offering the most sophisticated technology, the largest build envelope and maximum throughput of any additive fabrication system, Fortus offers unprecedented versatility and capability.

Parts produced with a Fortus 3D production system are 30-300% stronger than Stratasys parts produced with 3D printers, even when using the same materials. The advanced technology of Fortus makes the mechanical properties of the part the most accurate, stable, and durable.

Fortus System Comparison:

	Throughput Comparison	Envelope (cu.in.)	Accuracy	Materials

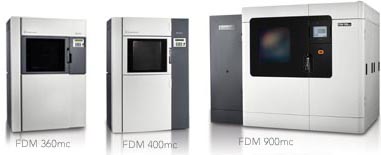

FDM 360mc
FDM 400mc
FDM 900mc

Fortus Material Options: (Back to Top)

The Fortus systems, in particular the 400mc, offers the most versatile material options
A variety of materials for form, fit, function, concept modeling, feature detail, snap-fits, vacuum metallization, electroplating, and as a master for RTV molding, vacuum forming, and rapid manufacturing of end-use products.

Material	ABS-M30	ABS-M30i	ABSi	PC-ABS	PC	PC-ISO	*ULTEM 9085**	PPSF
Layer Thickness 0.013 inch (0.330 mm) 0.010 inch (0.254 mm) 0.007 inch (0.178 mm) 0.005 inch (0.127 mm)	X X X X	X X X X	X X X X	X X X X	X X X	X X X	X X	X X
Support Structure	Soluble	Soluble	Soluble	Soluble	BASS	BASS	BASS	BASS
Available Colors	Natural White Black Dark Gray Red Blue	Natural	Translucent Natural Translucent Amber Translucent Red	Black	White	White Translucent Natural	Tan	Tan
Tensile Strength²	5,200 psi (36 MPa)	5,200 psi (36 MPa)	5,400 psi (37 MPa)	5,900 psi (41 MPa)	9,800 psi (68 MPa)	8,265 psi (57 MPa)	10,390 psi (72 MPa)	8,000 psi (55 MPa)
Tensile Elongation²	4.0 %	4.0 %	4.4 %	6.0 %	4.8 %	4.3 %	5.9 %	3.0 %
Flexural Stress	8,800 psi (61 MPa)	8,800 psi (61 MPa)	8,980 psi (62 MPa)	9,800 psi (68 MPa)	15,100 psi (104 MPa)	13,089 psi (90 MPa)	16,700 psi (115 MPa)	15,900 psi (110 MPa)
IZOD Impact, notched	2.6 ft-lb/in (139 J/m)	2.6 ft-lb/in (139 J/m)	1.8 ft-lb/in (96 J/m)	3.7 ft-lb/in (196 J/m)	1.0 ft-lb/in (53 J/m)	1.6 ft-lb/in (86 J/m)	2.0 ft-lb/in (106 J/m)	1.1 ft-lb/in (58.73 J/m)
Heat Deflection	204°F (96°C)	204°F (96°C)	188°F (87°C)	230°F (110°C)	280°F (138°C)	271°F (133°C)	307°F (153°C)	372°F (189°C)
Unique Properties	Variety of color options	ISO 10993 certified	Translucent material	Highest impact resistance	Highest tensile strength	ISO 10993 certified	FST flame, smoke, toxicity) certified material	Highest heat and chemical resistance
